MGJF12x35 multiple rip saw machine For Processing wood panel
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | Easwon |
| Certificación: | CE |
| Número de modelo: | MGJF12X35 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 set |
|---|---|
| Precio: | negotiated |
| Detalles de empaquetado: | estuche de madera |
| Tiempo de entrega: | 25 días |
| Condiciones de pago: | L/C, T/T |
| Capacidad de la fuente: | 50 conjuntos por mes |
|
Información detallada |
|||
| Modelo: | MGJF12X35 | Espesor de aserrado: | Entre 30 y 120 |
|---|---|---|---|
| Ancho de aserración: | 350 mm | Velocidad de alimentación: | 0-8m/min |
| Diámetro del huso: | 70 mm | Potencia del motor principal: | 30kW + 30kW |
| Poder del motor de alimentación: | 1.1kw x 2 | Longitud de la tabla de funcionamiento: | Frente de 800 mm, 400 mm atrás |
| Condición: | Nuevo | Garantía: | 1 año |
| Resaltar: | wood panel rip saw machine,multiple rip saw for woodworking,band saw machine for wood panels |
||
Descripción de producto

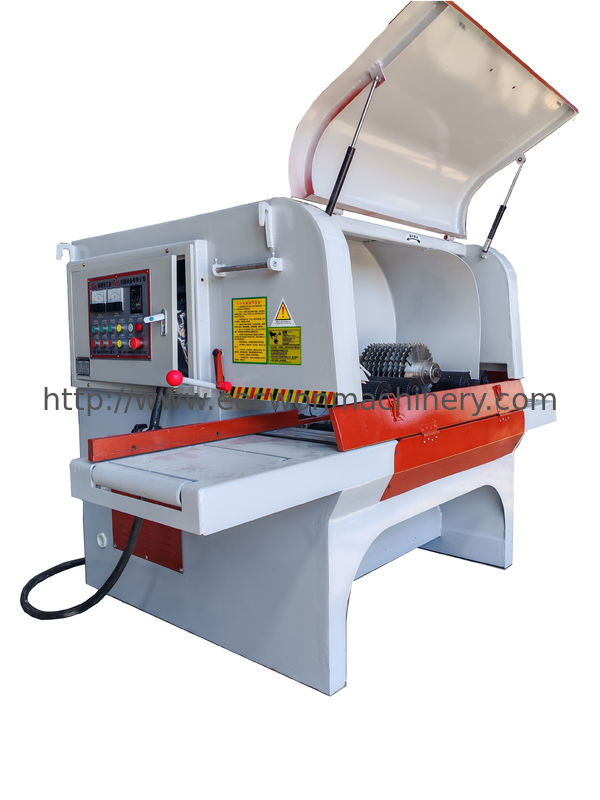

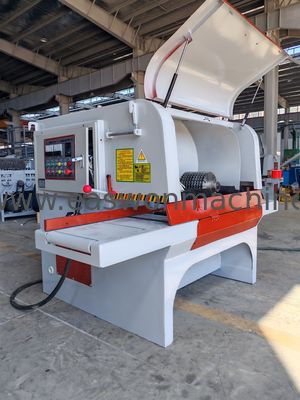

MGJF12X35 Automatic Multiple Rip Saw
MGJF12X35 Automatic Multiple Rip Saw is a high-efficiency woodworking machine designed for precise, simultaneous cutting of wood into multiple strips or boards. It features adjustable blades for customizable widths and is suitable for processing various wood types, including softwood and hardwood. Widely used in furniture manufacturing, flooring production, and timber processing, it ensures high productivity, accuracy, and minimal material waste, making it an essential tool for large-scale woodworking operations.
Specifications:
| Technical specification | Unit | MGJF12X35 |
| Main motor power | kw | 30 + 30 |
| Spindle speed | r/min | 2800 |
| Feeding motor power | kw | 1.1kw x 2 |
| Sawing thickness | mm | 30-120 |
| Sawing width | mm | <350 |
| Spindle diameter | mm | 70 |
| Feeding speed | m/min | 0-8 |
| Max. saw blade quantity | pcs | 10 |
| Working table length | mm | 800 front, 400 back |
| Saw blade size | mm | 230x2.6x70x36P+4T |
| Cooling water pressure | Mpa | 0.3-0.6 |
| Cooling way of saw blade | / | Axis water spray |
| Overall dimension | mm | 2000x1500x1400 |
| Net weight | kg | 2200 |
Package and shipping:
The rip saw is packed by plywood case, which is suitable for FCL and LCL shipping.
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
5. Supply operational manual and maintance manual in English.
