MGJY10-30WS double spindle Multiple rip saw For Processing wood logs
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | Easwon |
| Certificación: | CE |
| Número de modelo: | MGJY10-30WS |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 set |
|---|---|
| Precio: | negotiated |
| Detalles de empaquetado: | estuche de madera |
| Tiempo de entrega: | 25 días |
| Condiciones de pago: | L/C, T/T |
| Capacidad de la fuente: | 50 conjuntos por mes |
|
Información detallada |
|||
| Modelo: | MGJY10-30WS | Diámetro de aserrado: | 100 a 300 mm |
|---|---|---|---|
| Longitud de aserrado: | 600 a 4000 mm | Velocidad de alimentación: | 0 a 10 m/min |
| Diámetro del huso: | 60 mm | Potencia del motor principal: | 30kw + 37kw |
| Poder del motor de alimentación: | 1.5kw x 2 | Longitud de la tabla de funcionamiento: | Frente de 2000 mm, 2000 mm atrás |
| Condición: | Nuevo | Garantía: | 1 año |
| Resaltar: | double spindle rip saw,wood log processing saw,woodworking band saw machine |
||
Descripción de producto

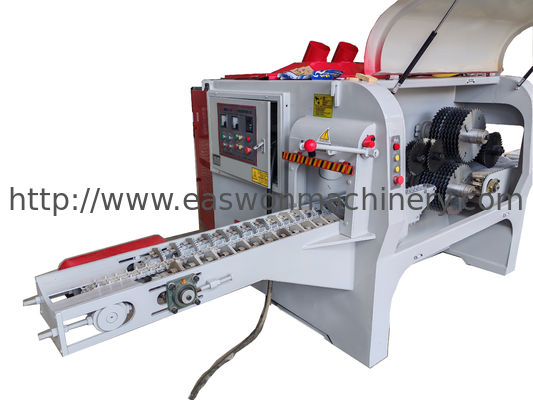

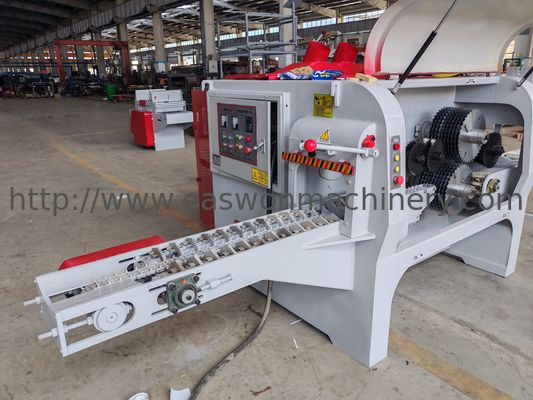

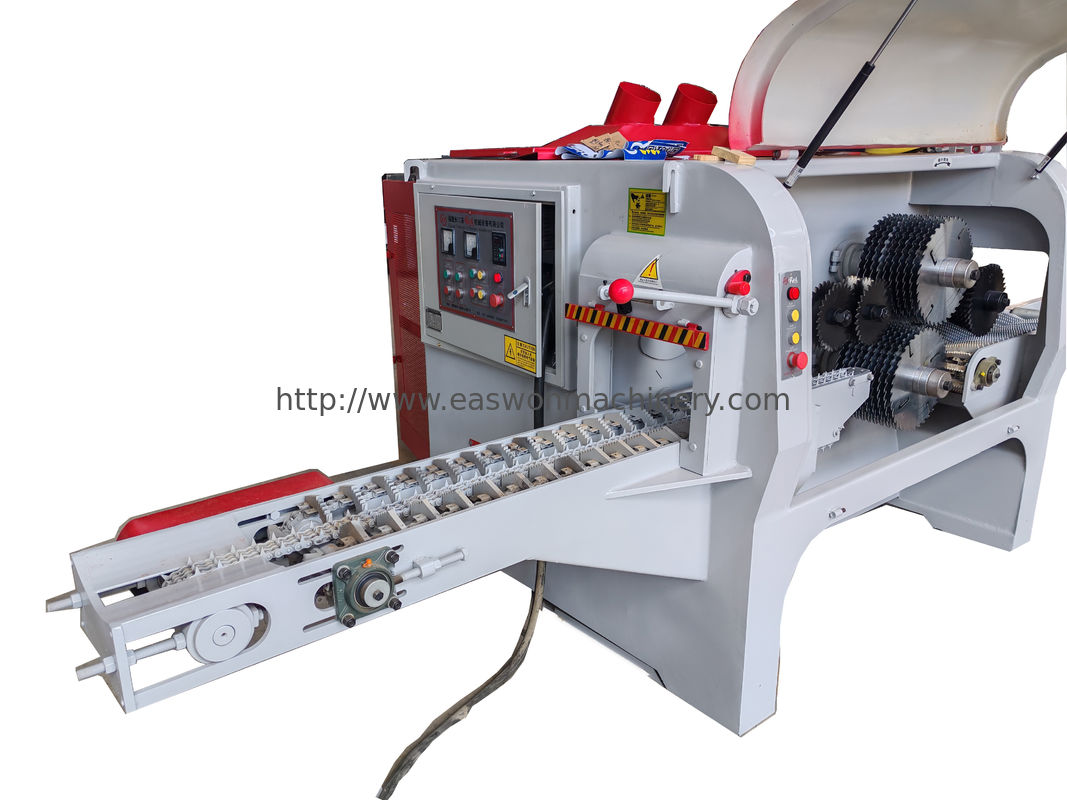

MGJY10-30WS Automatic Log Multiple Rip Saw
MGJY10-30WS Automatic Log Multiple Rip Saw is an advanced machine designed for efficiently cutting logs with the diameter of 300mm or less into multiple parallel boards. With automated operation, it ensures high precision and productivity in the lumber industry. The machine is equipped with max. 16pcs saw blades, allowing for simultaneous ripping of logs, significantly reducing processing time and labor costs. It is ideal for large-scale sawmills, offering consistent cuts and high throughput, while minimizing waste. The system's ease of operation and maintenance makes it a valuable tool for increasing overall production efficiency.
Specifications:
| Technical specification | Unit | MGJY10-30WS |
| Main motor power | kw | 30 + 37 |
| Spindle speed | r/min | 2800 |
| Feeding motor power | kw | 1.5kw x 2 |
| Sawing diameter | mm | 100-300 |
| Sawing length | mm | 600-4000 |
| Spindle diameter | mm | 60 |
| Feeding speed | m/min | 0-10 |
| Max. saw blade quantity | pcs | 16 |
| Working table length | mm | 2000 front, 2000 back |
| Saw blade size | mm | 420x(3.4-3.8)x60x36T+4 |
| Cooling water pressure | Mpa | 0.3-0.6 |
| Cooling way of saw blade | / | Axis water spray |
| Overall dimension | mm | 4000x1600x1550 |
| Net weight | kg | 2800 |
Package and shipping:
The rip saw is packed by plywood case, which is suitable for FCL and LCL shipping.
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
5. Supply operational manual and maintance manual in English.
